The IC Realtime is a United States-based company. The company was established in 2006. The brand is a global player in CCTV video surveillance technology for the residential, commercial, government, and military categories.
The IC Realtime has a smart IP finder and configurator for ELIP series IP cameras. It is known as the ELIP Camera Finder Utility.
This tool discovers and modifies IP addresses of Realtime ELIP series IP cameras. It is designed to work on Windows OS.
The download button is shared to download and install the Utility Device on a Windows PC. This application functions wonderfully well on Windows PCs.
What is the ELIP Camera Finder Utility?
The ELIP Camera Finder Utility is a desktop tool. It is designed for Windows PC. The tool is offered by IC Realtime for its ELIP series IP cameras. With its help, we can detect and configure ELIP series cameras.
The tool was launched in December 2015. It is still functional and used for device configuration. Because of its long-standing, it falls in the legacy software category.
Install & Configure the ELIP Camera Finder Utility on a Windows OS
1- Download & Install the ELIP Utility
The installation process is simple. The download button is given for the tool.
Click the button, and you get the application. The file is compressed. Decompress it to install on the Windows PC.
The installation process is simple and straightforward. It takes hardly any time to load. When the installation process is finished, we get the interface of the Utility Tool.
2- Scan and Add the Camera with the Tool

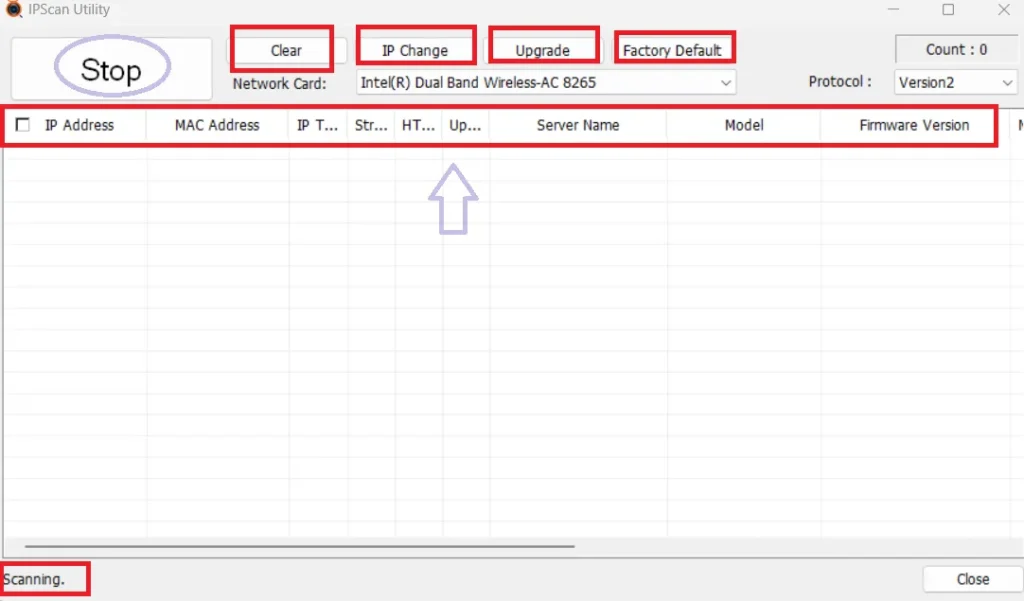

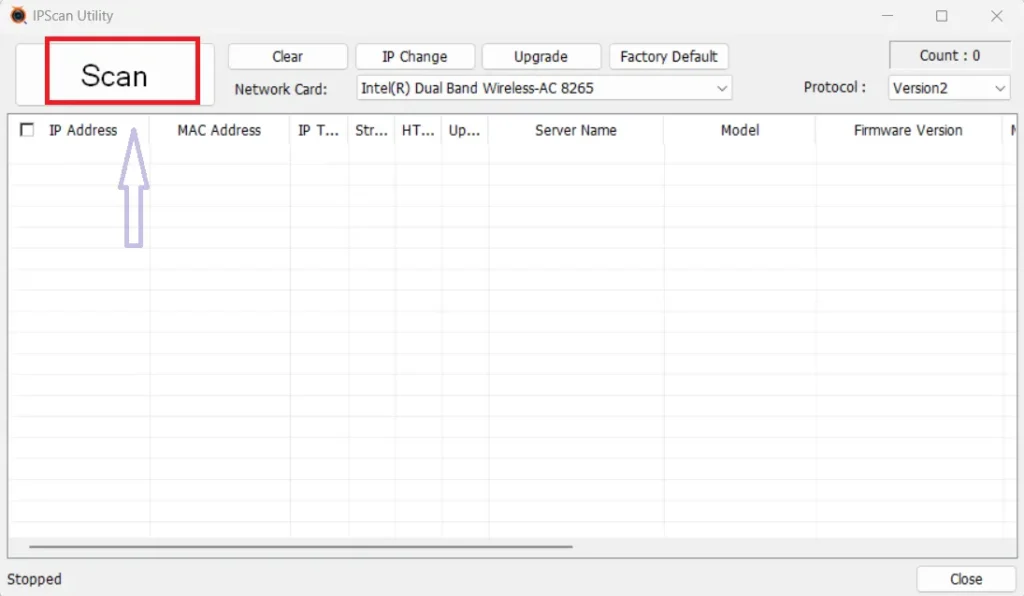

The scan button is given on the left-hand side of the top. Click the scan button, and it will automatically discover connected cameras on the LAN. When the camera is connected, you get its complete information.
The Camera’s IP address, MAC address, IP type stream port, HTTP port, server name, device model number, firmware version, camera resolution, video format, etc., are all easily available on the device tool homepage.
We can easily manage these pieces of information for device management.
3- Discover & Modify the IP Address of the Camera
First and foremost, select the camera. You can select a single camera or a batch option for multiple cameras at a time.
You can discover the IP address and modify it as per the requirement. You can align the IP address through the LAN’s subnet or enable the DHCP if available. Static IPs are preferred for stability.
4- Set for Factory Default
If the camera is malfunctioning and you want to reset it according to the company standards, then go for the ‘Factory Default’ option.
It will reset the device to the Factory standard and renew all its settings.
5- Upgrade Camera Firmware & Software
When firmware is not updated regularly, cameras do not perform at their highest quality. The firmware update and software update are important for smoother camera performance.
If there is any need for upgradation, press the upgrade button and follow the instructions.
Conclusion
The complete installation, setup, and configuration are illustrated here. The ELIP Utility Tool can be easily operated now. Every feature and step is detailed for a smoother operation of this device.
Please share your queries if you have any regarding this ELIP IP Tool. We go through all queries and provide a complete solution.
Thank You.
What is the ELIP Camera Finder Utility?
It is a Windows-based tool that helps detect, configure, and assign IP addresses to IC Realtime ELIP series cameras on a local network.
Where can I download the ELIP Camera Finder?
You can download it from IC Realtime’s official website or other trusted dedicated CCTV websites.
What operating systems are supported by the Elip camera finder?
This application was designed for Windows XP, 7, 8, 10 and 11.
How do I connect my camera for the first time to the ELIP Tool?
Power the camera via a PoE switch or injector, or a 12Volt DC adapter, then connect it with an Ethernet cable to the same network as your PC.
What is the default IP address of ELIP cameras?
Most model cameras come with a 192.168.1.108 static IP address.
How do I find my camera via the Elip device if I don’t know its IP?
Press the scan option. It scans the local LAN and lists all connected ELIP devices with their IPs and MAC addresses.
Can I change the IP address with this ELIP tool?
Yes, you can set either a single IP or apply batch IP settings to multiple cameras at once.
Does the Elip utility support DHCP?
Yes, but static IPs are recommended for stable camera connections and NVR integration.
Why can’t the Elip Camera Finder detect my camera?
There may be any one of these reasons. Check them properly.
1- Camera and PC are on different subnets.
2- Firewall/antivirus is blocking the scan.
3- Wrong cabling or the camera is not powered.
4- Camera reset needed.
